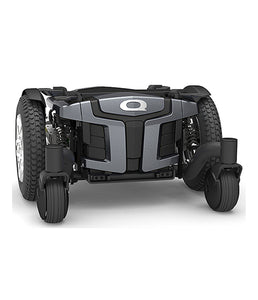

The Q6 Edge® Z Power Chair utilizes powerful 4-pole motors for maximum torque and Mid-Wheel 6® Design for aggressive outdoor performance and precision indoor maneuverability. Available with optional iLevel® power adjustable seat height, the Q6 Edge® Z Power Wheelchair accepts a broad range of exclusive seating and electronics options for unmatched adaptability and rehab capability.
ADP Approved Type 3 Base
Specifications
|
Drive Wheels
|
14" run flat;
Optional: 14" Pneumatic, 14" Knobby
|
|
Caster Wheels
|
Front: 6" Solid
Rear: 6" Solid
|
|
Maximum Speed4
|
Standard: Up to 9.5 km/h
Optional: Up to 12.5 km/h
|
|
Turning Radius5
|
19.75"
|
|
Overall Length
|
44.4" with front riggings
35.6" without front riggings
|
|
Base Width
|
26.25"
|
|
Seating Sizes
|
TRU-Balance® 3
High-Back: W: 16-24" D: 16-24"
Synergy®: W: 10-24" D: 10-24"
Static: W: 12-24" D: 12-24"
Power Tilt: W: 12-24" D: 14-24"
Lift: W: 12-24" D: 12-24"
|
|
Seat-to-Floor Heights16
|
TRU-Balance® 3
Synergy®/Static8: 16.5-18.5"
Power Tilt8: 18.125-20.125"
Lift & Tilt8: 19.75-21.375"
|
|
Manual Recline10
|
Yes
|
|
Battery Size6
|
Group 24
|
|
Battery Weight14
|
52 lbs. each
|
|
Battery Charger
|
8A Off-board
|
|
Motor Packages
|
4-pole Mid-Wheel 6®
|
|
Weight Capacity7
|
300 lbs.
|
|
Base Weight
|
143.5 lbs. (without batteries)
|
|
