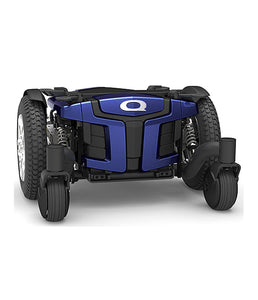

Quantum Q6 Edge® HD

Quantum Q6 Edge® HD

Quantum

With standard features like 4-pole motors, Mid-Wheel 6® Design, and ATX Suspension, and optional iLevel® power adjustable seat height, the Q6 Edge® HD Power Chair is engineered to meet the performance needs of the most physically active user. The Q6 Edge HD Power Wheelchair accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value.

ADP Approved Type 3 Base

    Specifications

    Drive Wheels

    14" run flat
    Optional: 14" Pneumatic, 14" Knobby

    Caster Wheels

    Front: 6" Solid
    Rear: 6" Solid

    Anti-Tip Wheels

    N/A

    Maximum Speed4

    Up to 7.5 km/h

    Turning Radius5

    19.75"

    Overall Length

    35.6" without foot riggings

    Base Width

    26.25"

    Seating Sizes

    TRU-Balance® 3 HD
    Synergy®/Static: W: 20-32" D: 20-28"
    Power Tilt: W: 20-32" D: 20-25"
    Lift & Tilt: W: 20-24" D: 20-25"

    Seat-to-Floor Heights16

    TRU-Balance® 3 HD
    Synergy®/Static8: 17.5-19.5"
    Power Tilt8: 18.5-20.5"
    Lift & Tilt8: 17.75-19.75"

    Manual Recline10

    No

    Battery Size6

    Group 24

    Battery Weight14

    52 lbs.

    Battery Charger

    8A Off-board

    Motor Packages

    4-Pole 4.7 mph1

    Weight Capacity7

    450 lbs.15, 16
