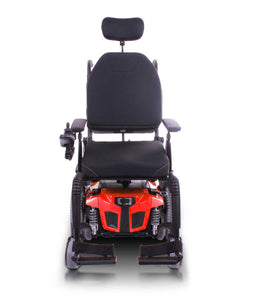

With features such as Mid-Wheel 6® Drive Design and ATX Suspension, the Q4 is engineered for tight-quarter maneuverability. The Q4 delivers rehab capability and performance at an excellent value.
ADP Approved Type 2 Base
Specifications
|
Drive Wheels
|
Standard: 14" flat free
|
|
Caster Wheels
|
Front: 6" Solid
Rear: 6" Solid
|
|
Anti-Tip Wheels
|
N/A
|
|
Maximum Speed4
|
Up to 8 km/h
|
|
Turning Radius5
|
21"
|
|
Overall Length18
|
32.3"
|
|
Base Width
|
24.5"
|
|
Seating Sizes
|
Q4 Seating
W: 16-20" (in 2" increments); D: 16-22" (in 2" increments)
|
|
Seat-to-Floor Heights16
|
Q4 Seating8: 17.25-19.25"
|
|
Manual Recline10
|
No
|
|
Battery Size6
|
NF-22
|
|
Battery Weight14
|
38 lbs.
|
|
Battery Charger
|
8A Off-board
|
|
Motor Packages
|
Two motor, Mid-Wheel 6®
|
|
Weight Capacity7
|
300 lbs.
|
|
